Integrated HDZero 5.8GHz digital VTX
- Output power: 25mW / 200mW
- Channels: R1-R8, F2/F4, L1-L8
- U.FL connector with included ultra-light linear antenna
All products
2S/3S digital AIO flight system

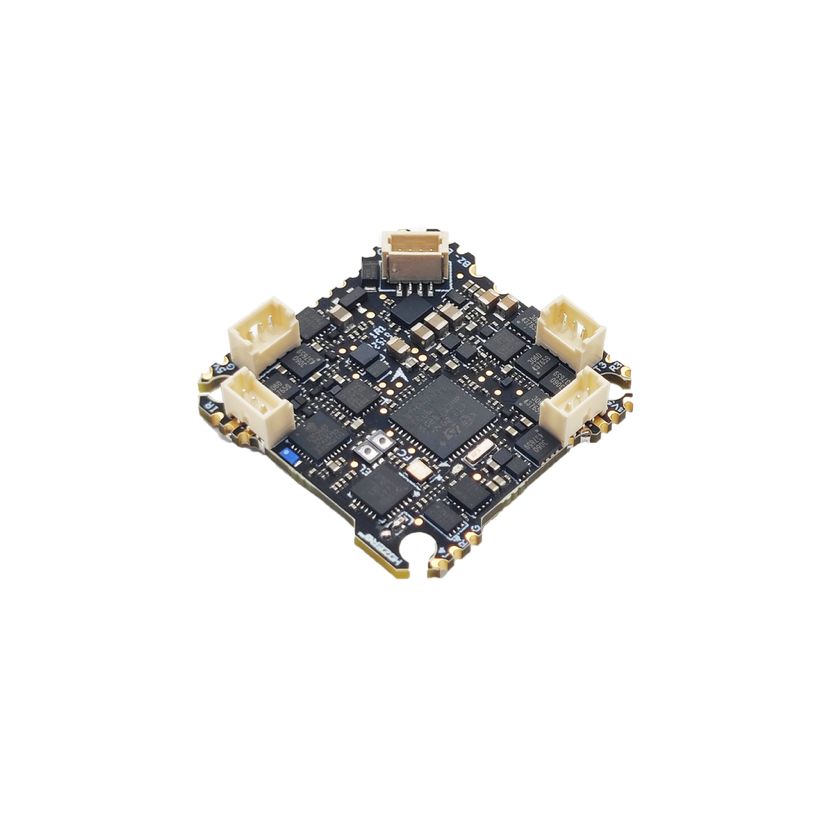

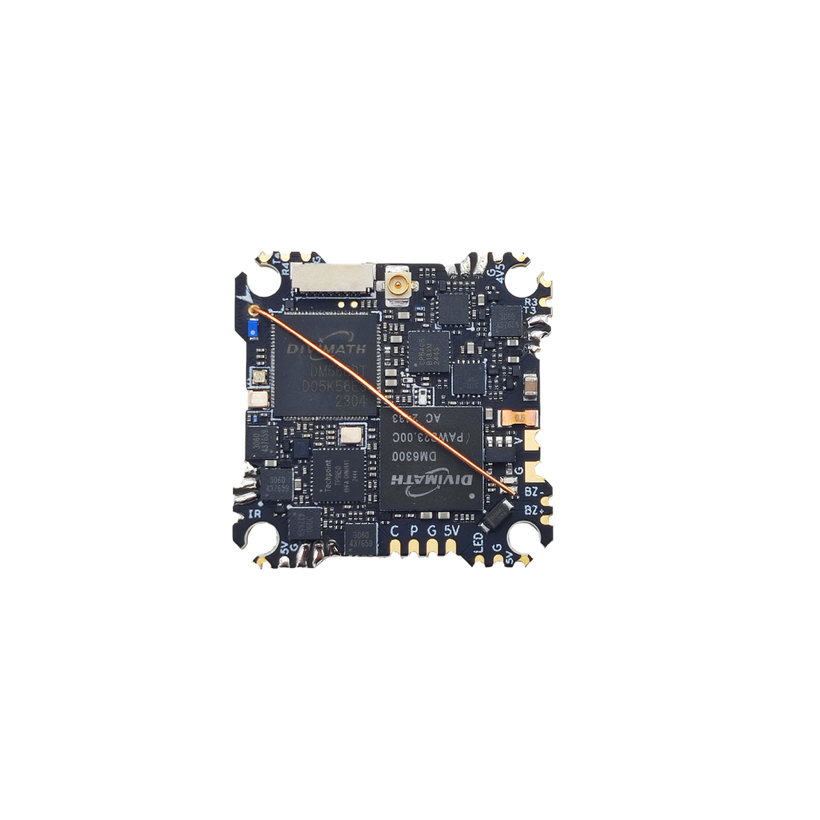

HDZero AIO15
Flight controller, digital video transmitter, ESC, receiver and BEC on one board.
The HDZero AIO15 is an all-in-one digital FPV flight system designed specifically for 2S-3S tiny whoops and micro freestyle builds, on a compact, ultra-lightweight 31.3x31.3mm board.
$109.99
AIO15 inputs HD composite video via a single wire instead of a MIPI cable, compatible with LUX/Eco Camera.
7.2g
Weight with motor plugs
15A
4-in-1 ESC, 18A peak
2S-3S
Battery input, 3.5V-13V
31.3mm
Square board
What you get.
Built-in serial ExpressLRS 2.4GHz receiver
- Packet rates: 50-1000Hz
- Pre-soldered enamel wire antenna
Flight controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
4-in-1 15A ESC
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- MCU: EFM8BB21
- BlueJay firmware, DShot600 ready
- 5V @ 1A BEC output for accessories and camera
Specifications
- Battery input
- 2S-3S (3.5V-13V)
- Mounting
- 25.5x25.5mm M2
- Board dimensions
- 31.3x31.3mm
- Weight
- 7.2g (with motor plugs)
- Compatibility
- Fits popular whoop frames
