HDZero Goggle 2

FPV goggle

HDZero Goggle 2

One goggle for digital, analog and HDMI video.

HDZero Goggle 2 builds on the success of the original with practical upgrades pilots will appreciate: a sharper, dust-resistant optic module, built-in analog receiver, integrated WiFi for wireless mirroring, and a protective hard case.

Color

$699.99

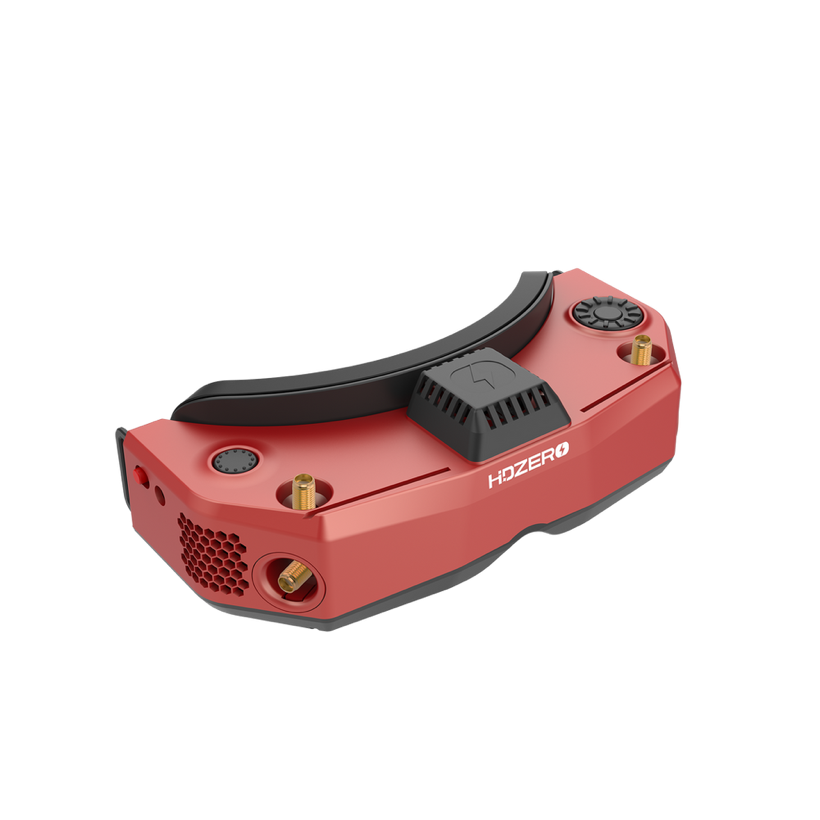

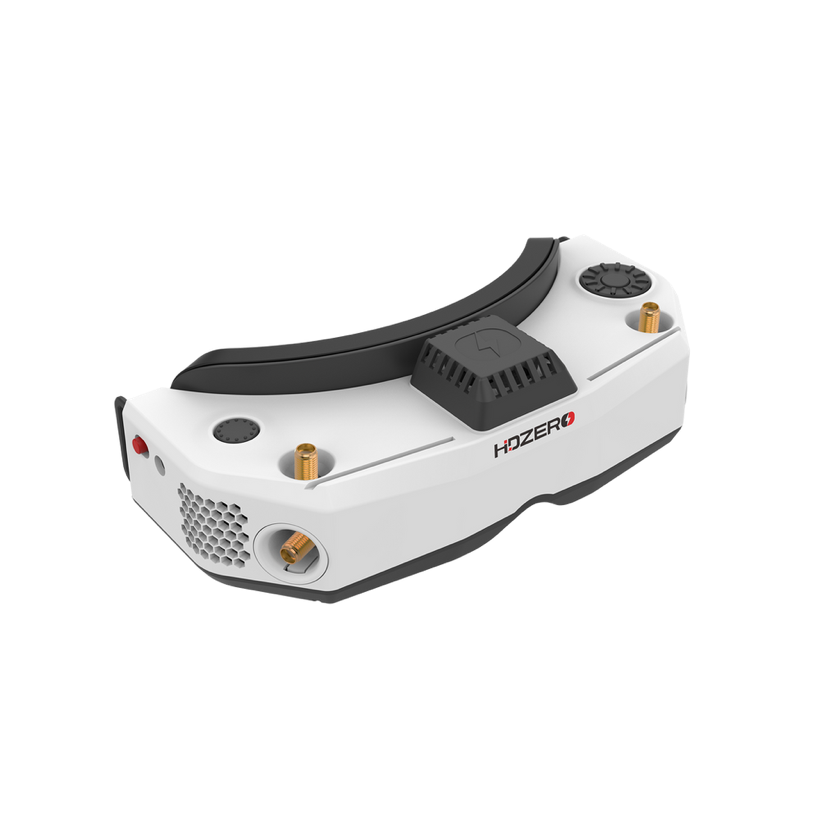

Available in two shell colors, White and Red.

1080p 90Hz

OLED micro-displays

<3 ms

Delay from HDZero camera to your eyes

46°

Field of view

2S-6S

Input voltage, 7V-25.2V

What you get.

Display and optics

  • Fully enclosed optical module to keep dust out
  • Significantly sharper edges for enhanced optical display clarity (<1.5% distortion)

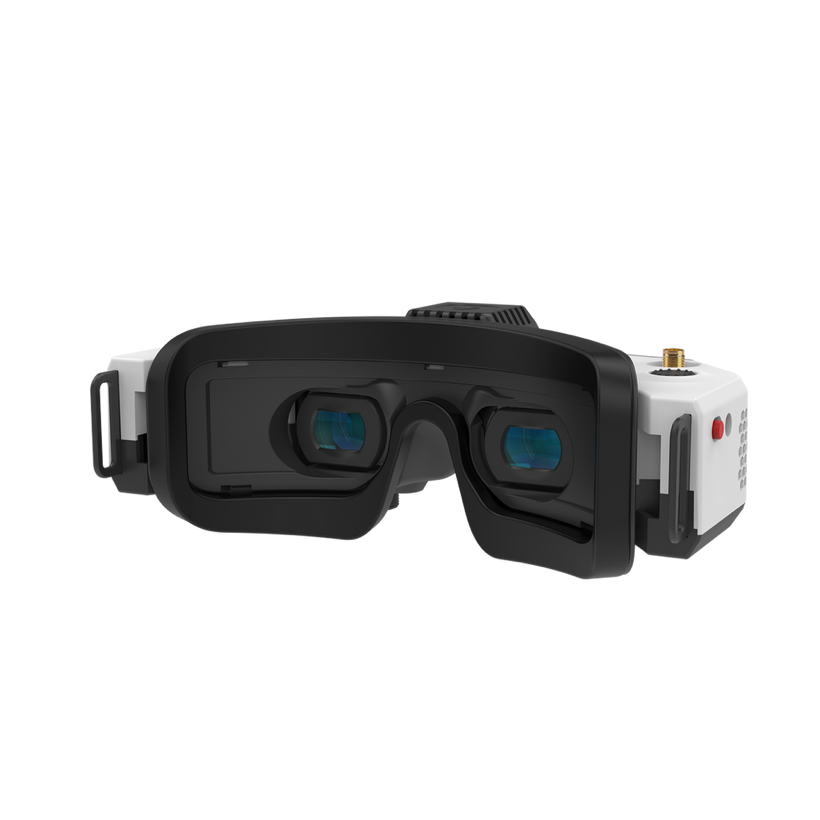

  • 90Hz 1080p OLED screens with sliding IPD adjustment and dials for focus adjustment
  • Support for diopter lens inserts

Video link

  • 3ms from camera to your eyes, with no jitter or dropped frames
  • Built-in analog receiver sharing antenna with the HDZero receiver
  • Greatly enhanced analog reception performance, with improved handling of weak signals
  • Integrated 2D deinterlacer that adds no delay for analog input
  • Add-on side-mounted analog module bay that accepts most of today's analog modules

Inputs, outputs and recording

  • HDMI input and HDMI output
  • Built-in H.265 DVR for HDMI in, analog and HDZero input
  • Built-in 2.4GHz WiFi video streaming module for live streaming
  • 3.5mm combination headphone / microphone jack, plus a built-in microphone for DVR
  • 3.5mm analog video/audio input for use with ground station inputs

Built for pilots

  • The goggle runs Linux, and all code for the user interface is open source
  • Built-in ELRS backpack support
  • 6-axis smart inertial measurement for head tracking pan and tilt support
  • Three independently addressable fans cool the internals and prevent fogging
  • Mounting rails for patch antennas, and recessed front SMA jacks so antennas can stay on when packed

Specifications

Delay from HDMI input
<1ms
Delay from analog camera to your eyes
<2ms
Delay from HDZero camera to your eyes
<3ms
Display
Full HD 1920x1080p 90fps OLED micro display
Field of view
46deg
IPD range
58-72mm
Adjustable focus range
+4 to -7 diopter
Input voltage
7V-25.2V (2S-6S)
