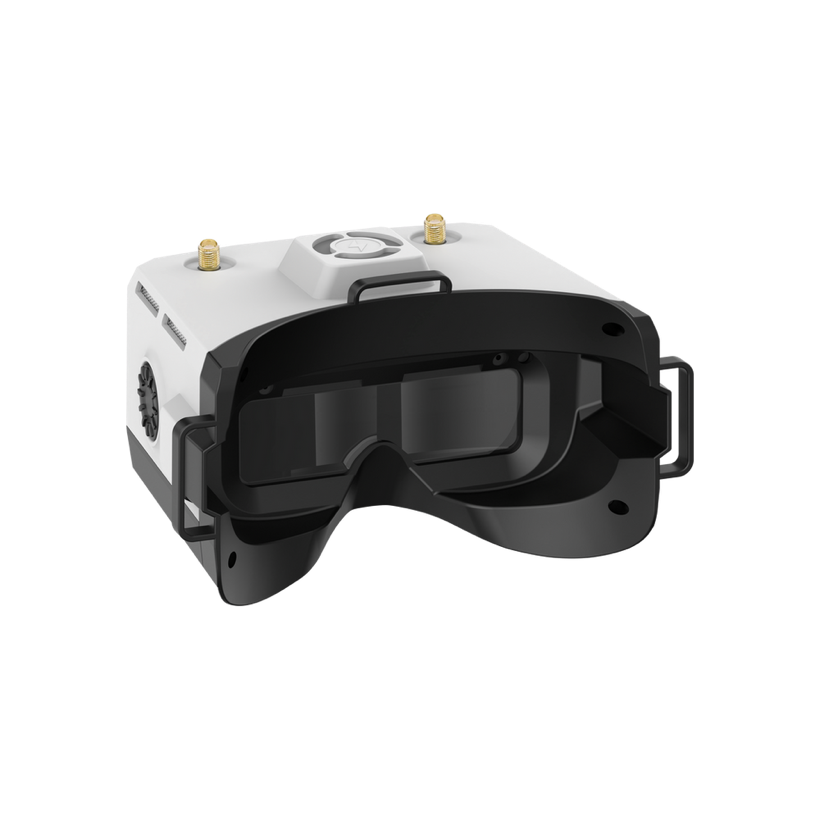

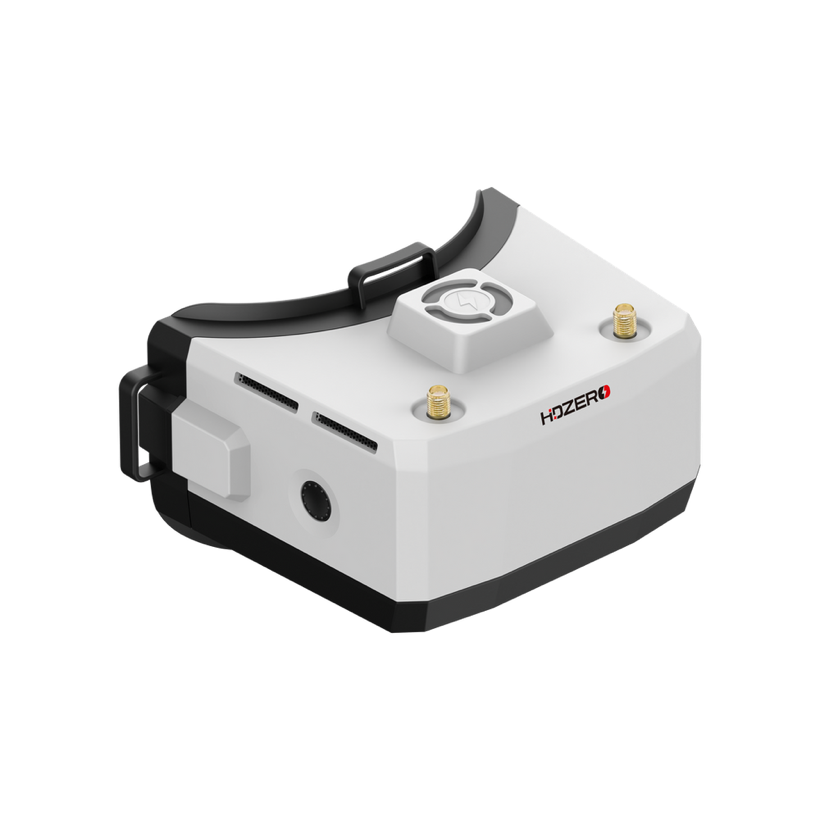

FPV box goggle

HDZero BoxPro / BoxPro+

The box goggle for HDZero digital, analog and HDMI video.

A high-performance FPV goggle designed for smooth flying with almost no video delay. This all-in-one box-style goggle supports digital, analog, and HDMI video, featuring a 100Hz, 1800 nits LCD display for a bright, fluid, and immersive viewing experience.

Model

$324.99

WiFi video streaming and the ELRS backpack are available on the BoxPro+ model only.

100Hz

1800 nits ultra-bright LCD

4 ms

Delay from HDZero camera to your eyes

56°

Field of view

Antennas: two inbuilt patch, two linear SMA

What you get.

Speed and display

A delay of just 1ms from HDMI input, 3ms from an analog camera, and 4ms from an HDZero camera
100Hz, 1800 nits ultra-bright LCD for crystal-clear visuals, even in direct sunlight
56° field of view for a sharp and immersive experience

Comfort and optics

Eyeglasses-friendly design, so you can wear them comfortably inside the goggles
Optional diopter lens insert can be made to order to match your prescription
Adjustable fan speed for internal cooling and anti-fog prevention

Versatile video support

Integrated HDZero digital receiver with 4 antennas, supporting all HDZero modes
Built-in high-sensitivity analog receiver

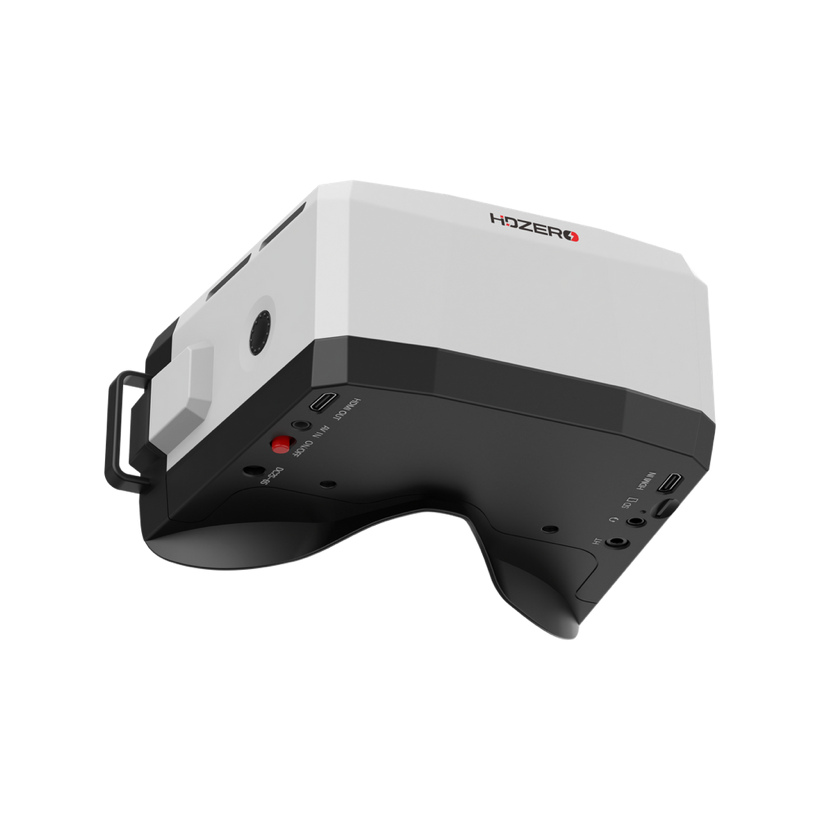

Mini HDMI input and output
3.5mm AV input and head tracker output

DVR and recording

Improved analog video resolution with real-time deinterlacer
Built-in H.265 DVR supports HDZero, analog, and HDMI video recording
Automatic and manual recording modes
Multiple audio sources: built-in mic, line-in and AV-in

BoxPro+ only

WiFi video streaming to smartphones, desktops, or laptops
ESP32 ExpressLRS backpack module to sync video channel, DVR start/stop, and wireless head tracking with ELRS radios

Open source

Runs on a Linux-based open-source platform
Full access to the user interface code
Community-driven development

Specifications

Delay from HDMI input: 1ms
Delay from analog camera: 3ms
Delay from HDZero camera: 4ms
Display: 100Hz, 1800 nits LCD
Field of view: 56°
DVR encoding: H.264 / H.265
DVR resolutions: 1280x720p60, 1280x720p90, 1280x720p100, 1920x1080p60
Power: 2S-6S batteries via XT60 connector (battery not included)
