Video transmitter

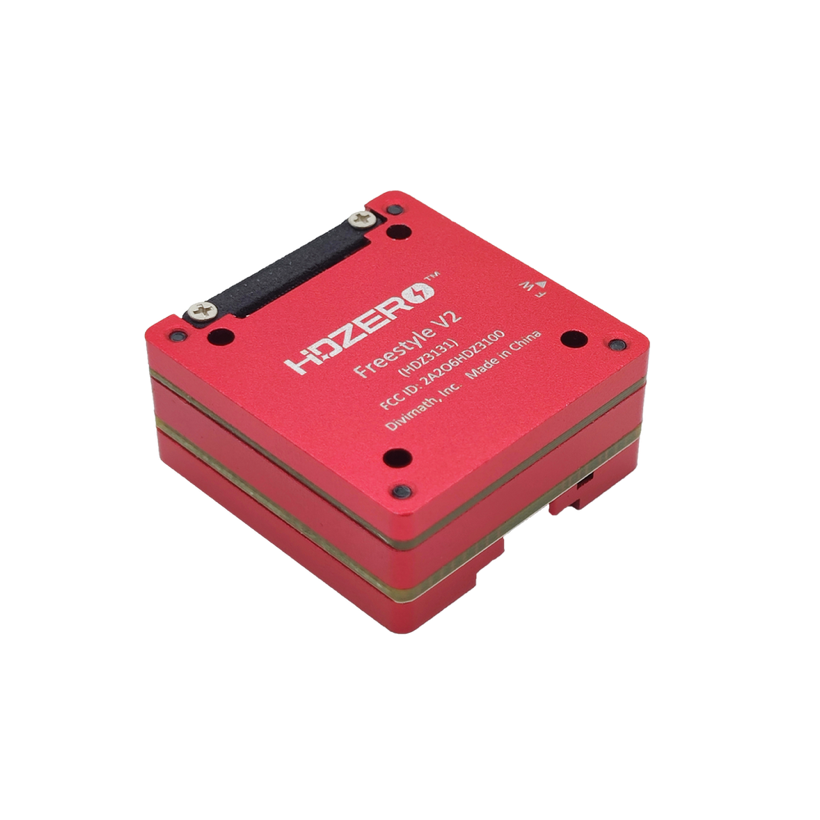

HDZero Freestyle V2 VTX

Our 2nd generation 5.8GHz digital video transmitter.

The HDZero Freestyle V2 VTX can be fitted into most 3-5 inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity.

$99.99

22.3g

Weight

25 / 200mW

Transmitter power

20x20mm

Mounting pattern, M2 holes

7-25V

Input power

What you get.

Built to survive

CNC case protects all sockets and provides durability, RF shielding and improved signal integrity
Antenna and MIPI cable are secured by the included retention bar and screws
Wire harness included for solderless connection for power and MSP UART port

Video and power

Supports 720p60, 1080p30, 540p60 and 540p90 video modes
Capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities
SmartAudio and MSP Canvas Mode supported

Specifications

Weight: 22.3 g
Dimensions: 29x30x14mm
Operating frequency: 5.725-5.850GHz
Transmitter power: 25mW, 200mW
Mounting pattern: 20x20mm M2 holes
Antenna interface: Secured U.FL
Video in: Secured MIPI
SmartAudio: Yes
MSP Canvas Mode: Yes
Input power: 7-25V
Operating temperature: 32°F-104°F (0°-40°C)
Power consumption: 6-15W
